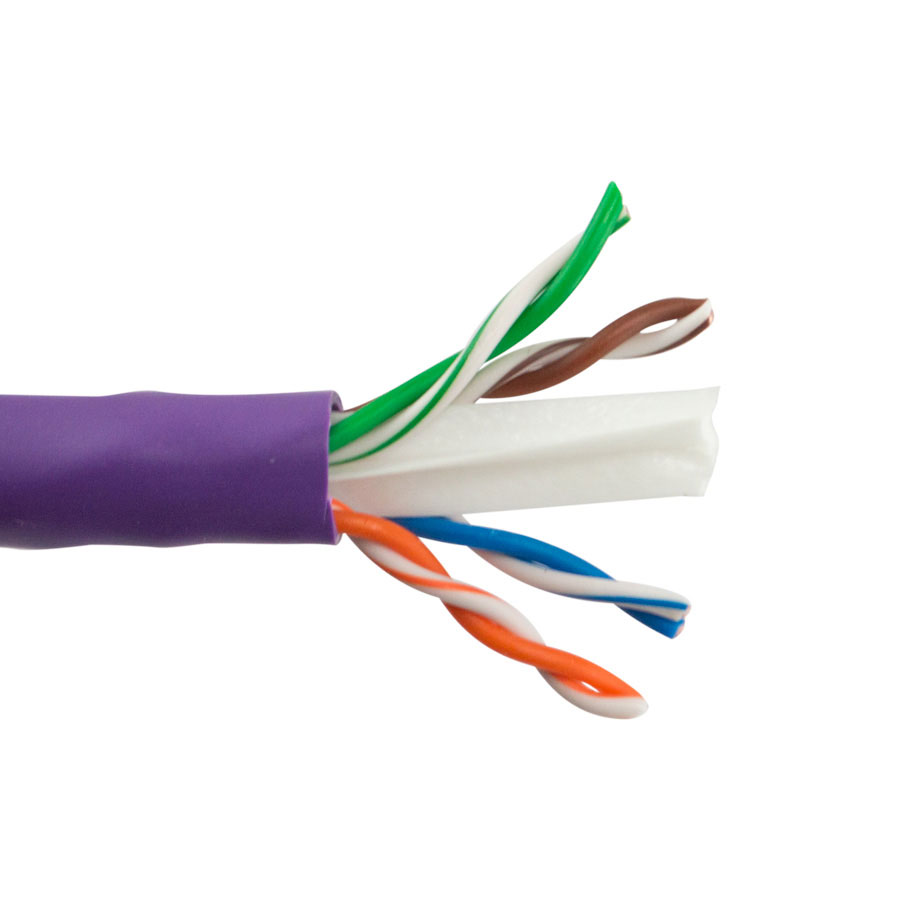

SC-BC1600PUR – Cat6 UTP Standard Series ETL, Purple – 1000ft Box
Cat6 Standard Series – 500MHz 23awg Solid BC 4PR, UTP, ETL CMR, ANSI/TIA-568.2-D, IEEE 802.3at PoE 30W (Type 2), RoHS, PVC Jkt- Purple – 1000ft/305m Box
| Cable Construction | UTP |
| Jacket Material/Rating | PVC |
| Fire Safety Rating | CMR FT4 |
| 3rd Party Rated | ETL c(ETL) |
| Installation Type | Indoor |
| Enhanced Tested Bandwidth | 500 MHz |
| ISO/IEC 11801 Class Type | Class E |
| Transmission Standards | 1G |
| PoE Rating (IEEE 802.3af,at,bt) | 15W/30W Type 2 |
| Wire Conductors | Solid BC |
| Wire AWG | 23 AWG |
| Conductor Insulation | HDPE |
| Pair Separator/Spline | Yes |
| Cable Overall Diameter (OD) | 5.9-6.0mm |
| Insulated Conductor OD | 0.96-1.02mm |
| Packaging Type | Reelex II Pullbox |
| Packaged Length (ft/m) | 1000ft/305m |
Cat6 Standard Series – 500MHz 23awg Solid BC 4PR, UTP, ETL CMR, ANSI/TIA-568.2-D, IEEE 802.3at PoE 30W (Type 2), RoHS, PVC Jkt- Purple – 1000ft/305m Box
Supports all Category 6 and Class E applications including structured cabling for horizontal and building backbone, Ethernet 10/100/1000/10GBASE-T, indoor use, fixed installations, Power Over Ethernet (PoE), and other high bandwidth applications.
See our Cable Selector Guide to assist with your SimplyBRANDS selection process to easily identify the correct cable required to properly support the bandwidth, transmission rate & PoE requirements that your installed devices & applications need to perform at the highest level.
