Fusion Splice Thermal Sleeve Heater 120mm by SimplyFIBER™
SF-FMTH120 – Fusion Splice Thermal Sleeve Heater 120mm by SimplyFIBER™
| Battery Capacity | 7.4 V / 6000 mAh lithium battery (preliminary) |
| Power Supply | USB Type-C charging; supports 5 V / 1 A and 5 V / 2 A input |
| Heat-Shrinkable Tube | 20-60 mm; optimized for standard 40 mm and 60 mm sleeves |

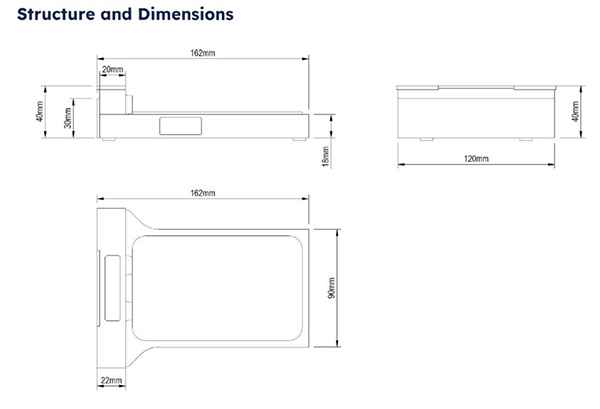

| Dimensions | Main body: 160 mm x 90 mm x 18 mm; heater width: approx. 120 mm |
| Heater Oven | 120 mm-wide heater assembly in T-shaped configuration |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 0-95% RH |
| Weight | TBD |
| Heat Cycles per Full Charge | ≥100 cycles target; 110-120 cycles engineering target |
| Charging Cable | Standard USB-C to USB-C cable |
| Charge Time | TBD for both 1 A and 2 A charging |

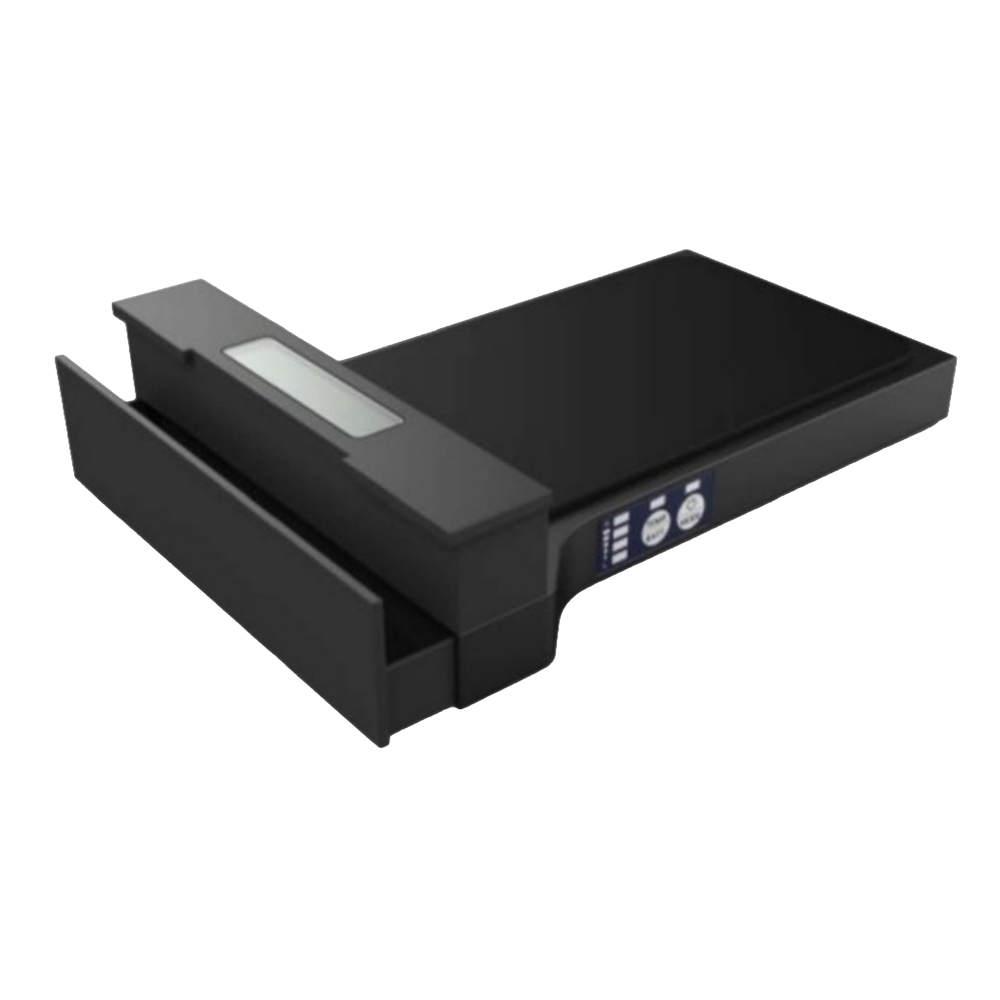

| Cooling Tray | Pull-out tray with approx. 15 mm travel for placement and cooling of heated splice protection sleeves |
Fusion Splice Sleeve Heater
SF-FMTH120
Overview

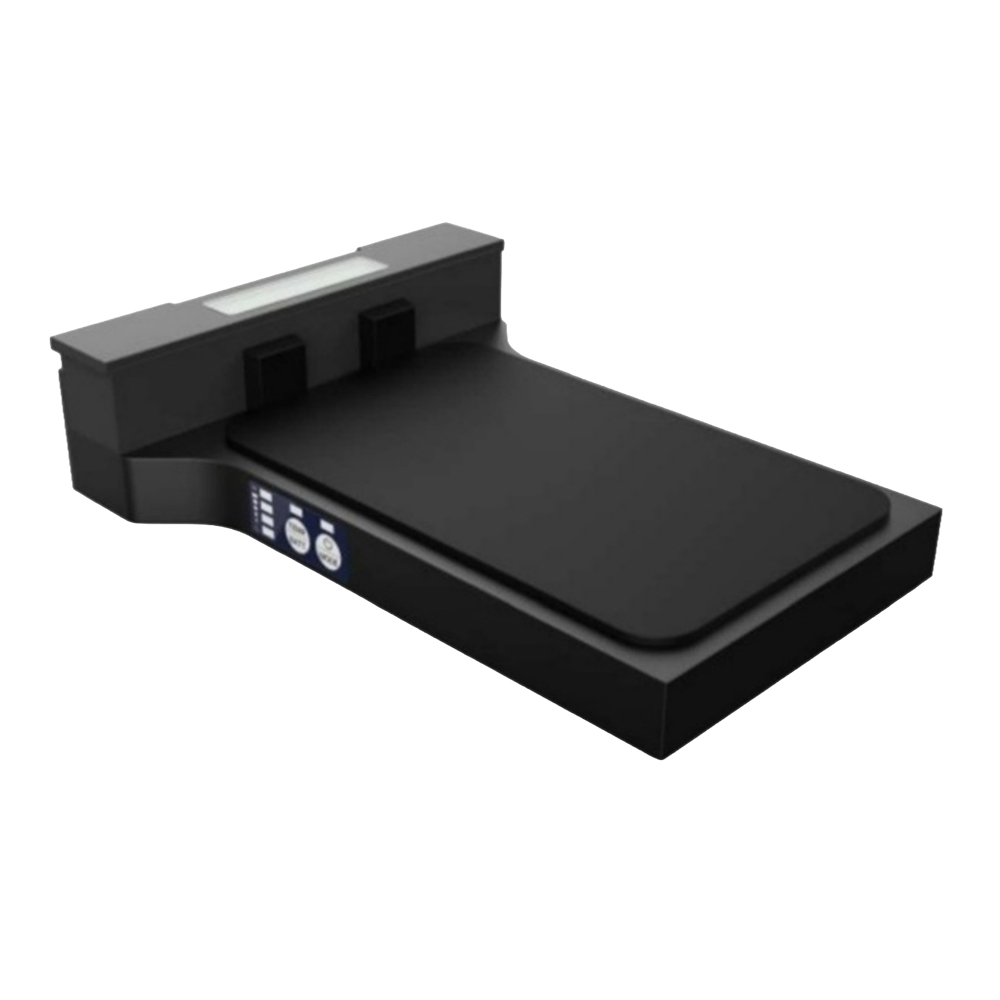

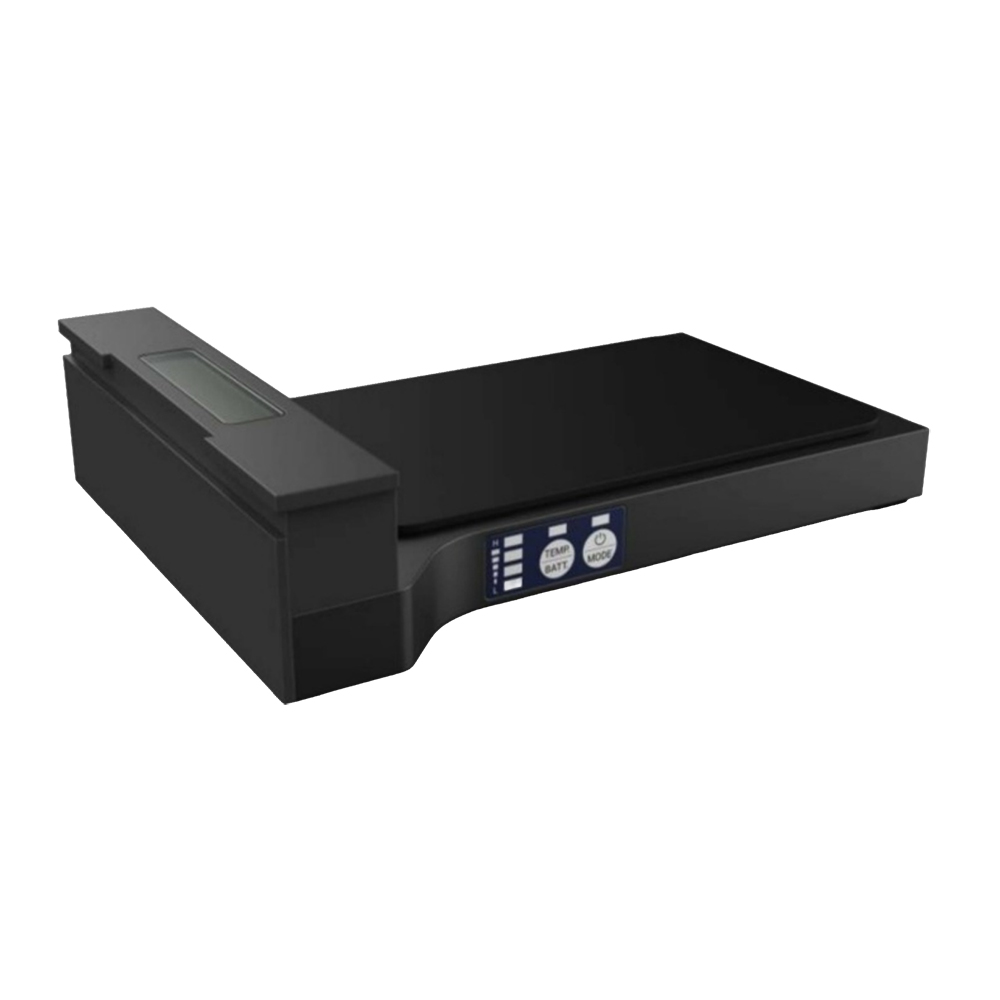

The SF-FMTH120 is a compact, battery-powered fusion splice sleeve heater developed for use with a small-form-factor fusion splicer and cleaver combination. It uses a 120 mm heater assembly on a 90 mm-wide main body, creating a compact T-shaped workstation.
The unit is intended for 40-60 mm splice protection sleeves and is sized to support a fusion splicer measuring approximately 90 mm (W) x 150 mm (L) x 68 mm (H). It is designed for FTTH, OSP maintenance, restoration, closure work, and other portable field applications.
Typical Applications
Key Features
