Fusion Mini by SimplyFIBER™ – The Innovative Fiber Optic Connector Solution for FTTH
**Limited Availability** Fusion Mini – All-in-one device, Easy and quick fusion splicing of optical fibers and Connectors for FTTH by SimplyFIBER™.

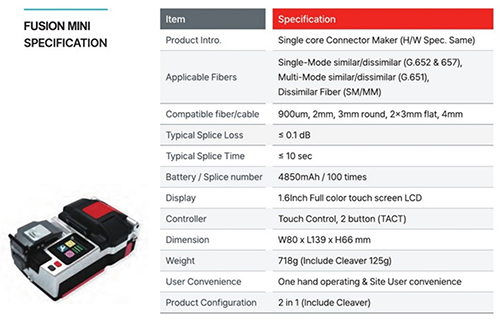

Fusion Mini Specifications
| Product Intro | Single core Connector Maker (H/W Spec. Same) |
| Applicable Fibers | Single-Mode similar/dissimilar (G.652 & 657) Multi-Mode similar/dissimilar (G.651) Dissimilar Fiber (SM/MM) |
| Compatible fiber/cable | 900um, 2mm, 3mm round, 2x3mm flat, 4mm |
| Typical Splice Loss | ≤ 0.1 dB |
| Typical Splice Time | ≤ 10 sec |
| Battery / Splice number | 4850mAh / 100 times |
| Display | 1.6Inch Full color touch screen LCD |
| Controller | Touch Control, 2 button (TACT) |
| Dimension / weight | 80mm(W) x 139mm(L) x 66mm(H) / 718g (Include Cleaver 125g) |

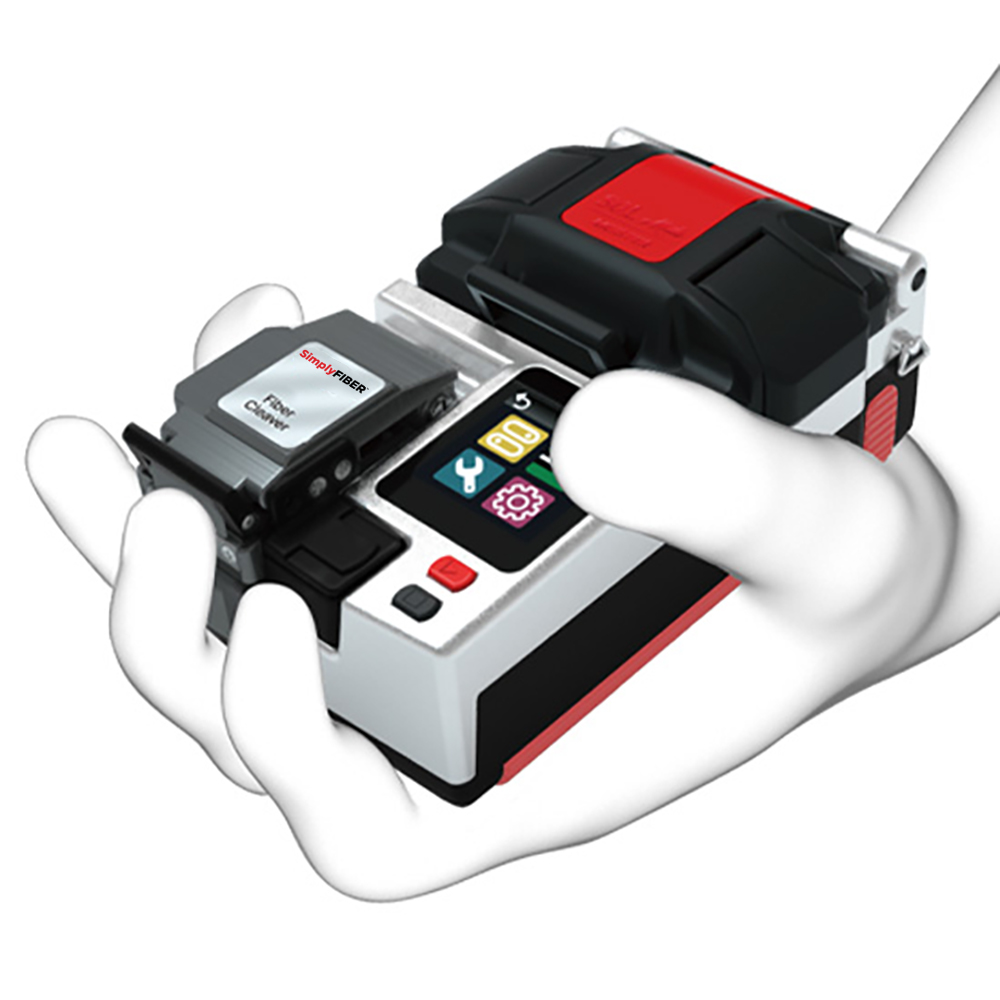

| User Convenience | One hand operating & Site User convenience |

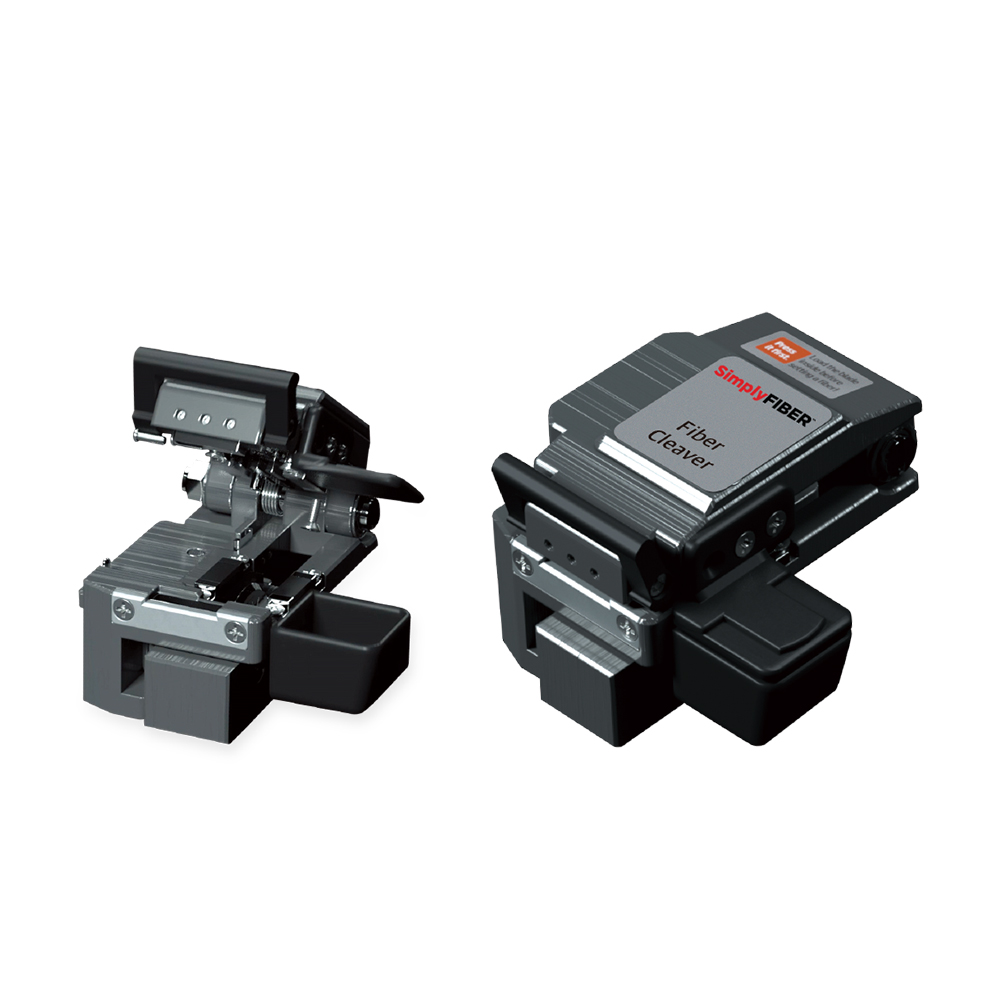

| Product Configuration | 2 in 1 (Include Cleaver) |

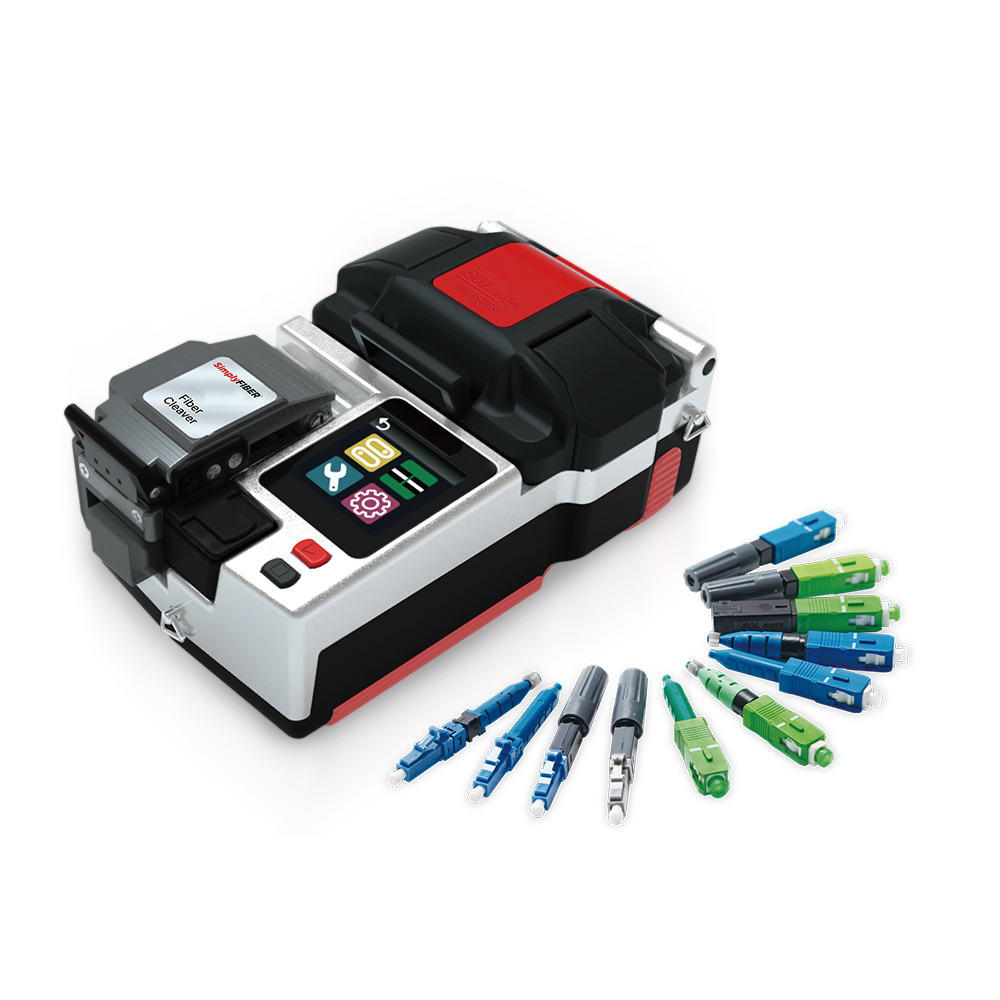

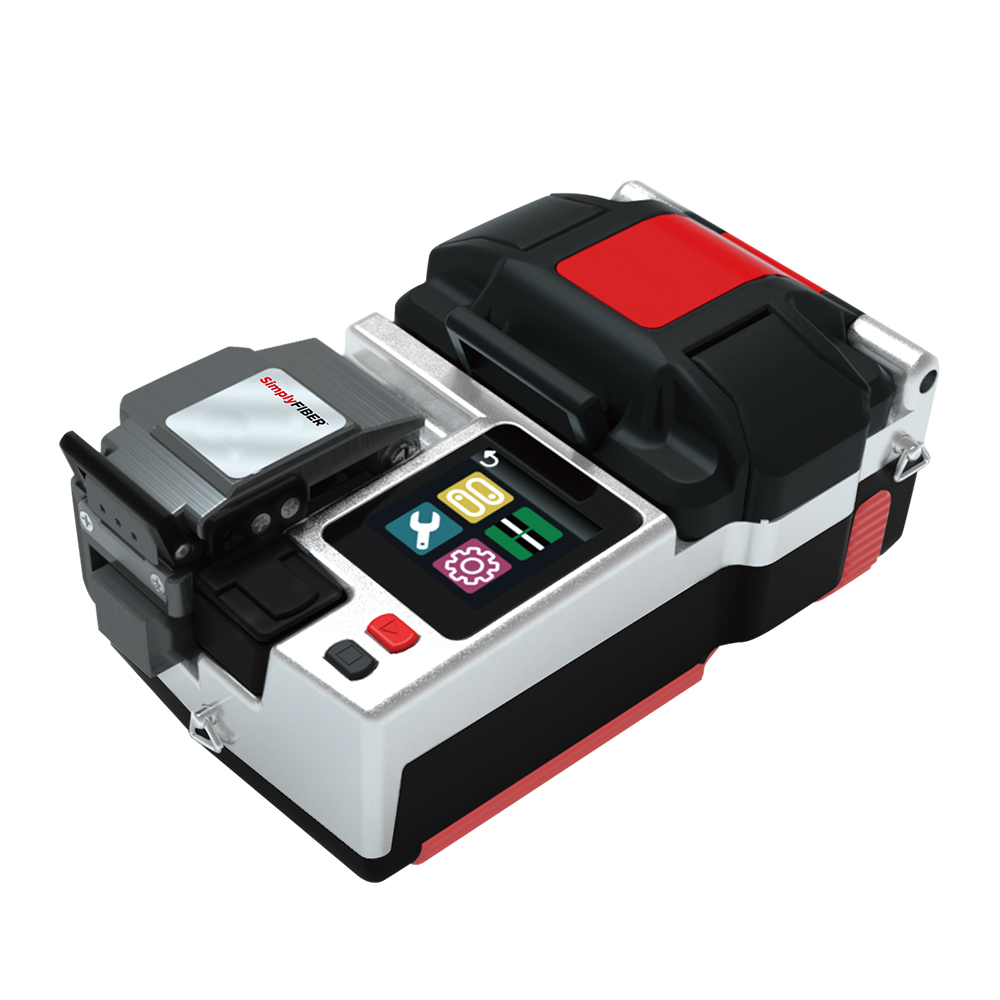

Fusion Mini (SF-FM4000) – Discover our SimplyFIBER™ revolutionary fiber optic connector solution. Our innovative approach enables easy installation for FTTH, making it accessible for everyone. All-in-one device,easy and quick fusion splicing of optical fibers and Connectors for FTTH.
Special: Buy 1,000 Connectors & Get a Fusion Mini for FREE – Contact us to learn more

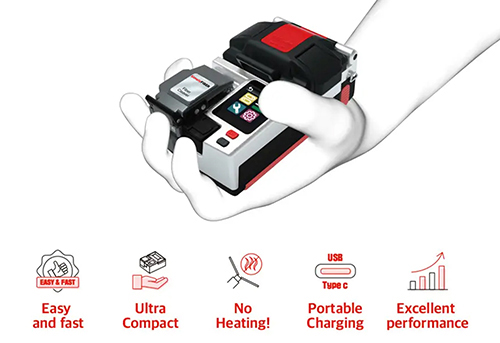

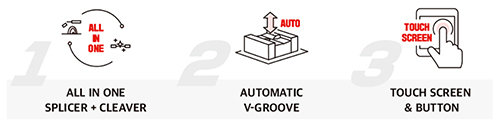

Key Features

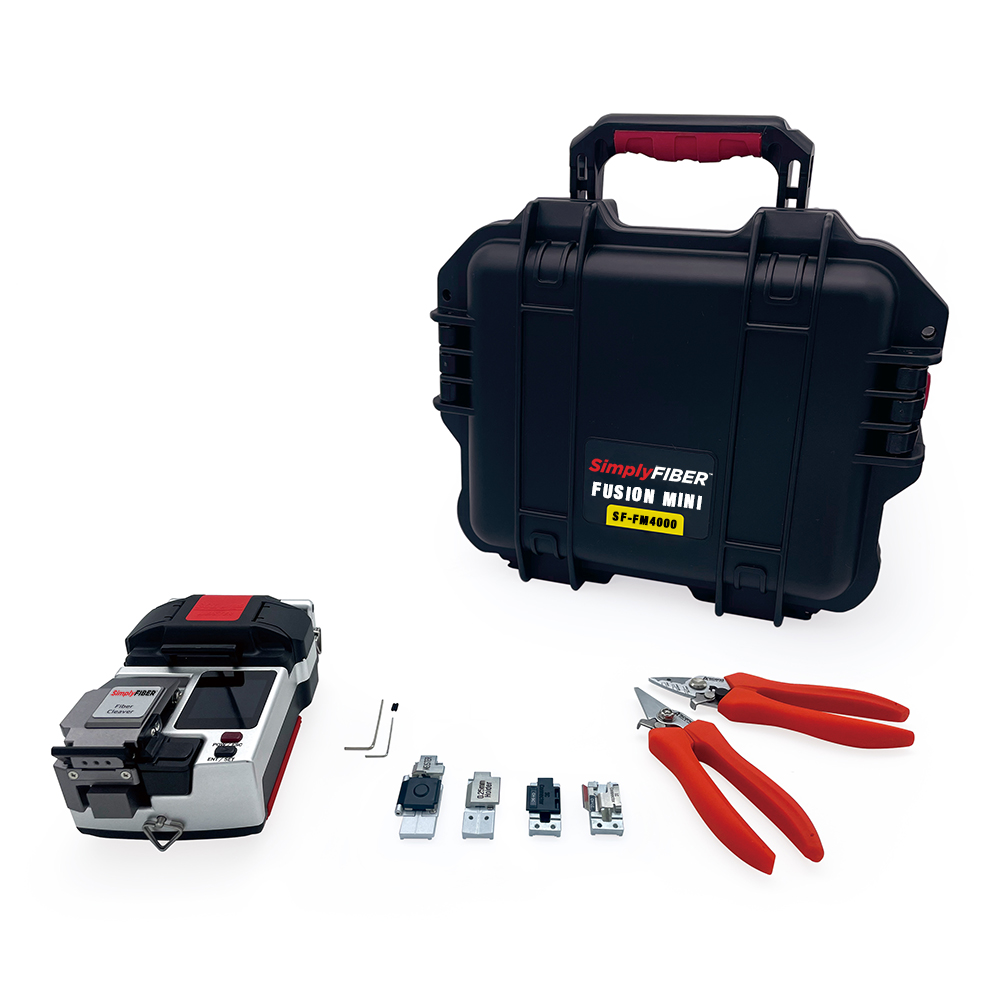

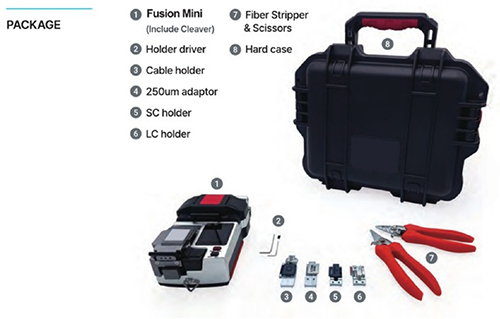

Fusion Mini Includes:
The FTTH SOLUTION is Easy and Simple
Innovative Fiber Optic Solution for FTTH, Fusion Mini
No Sleeve Heating Process

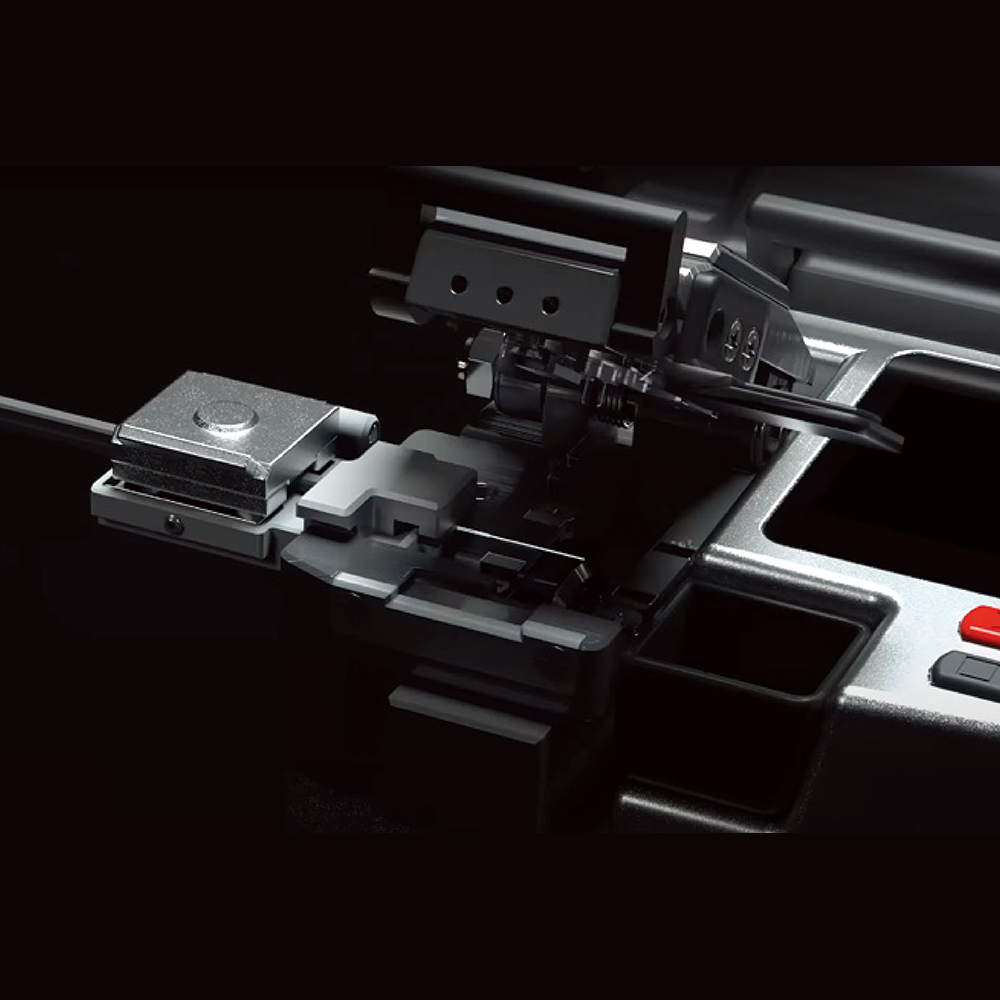

Construction

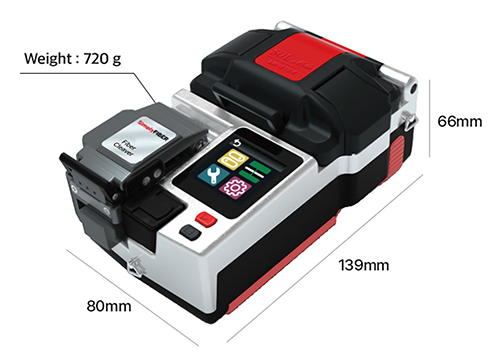

Dimensions
