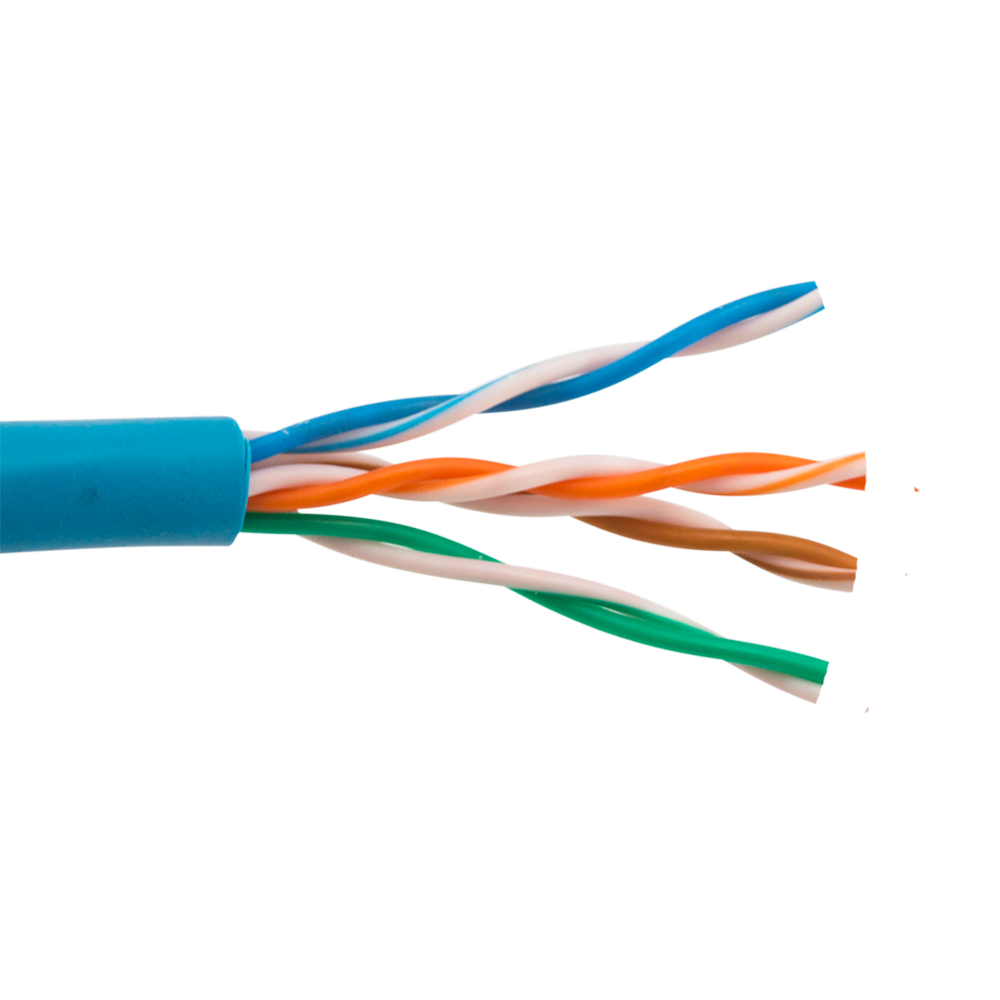

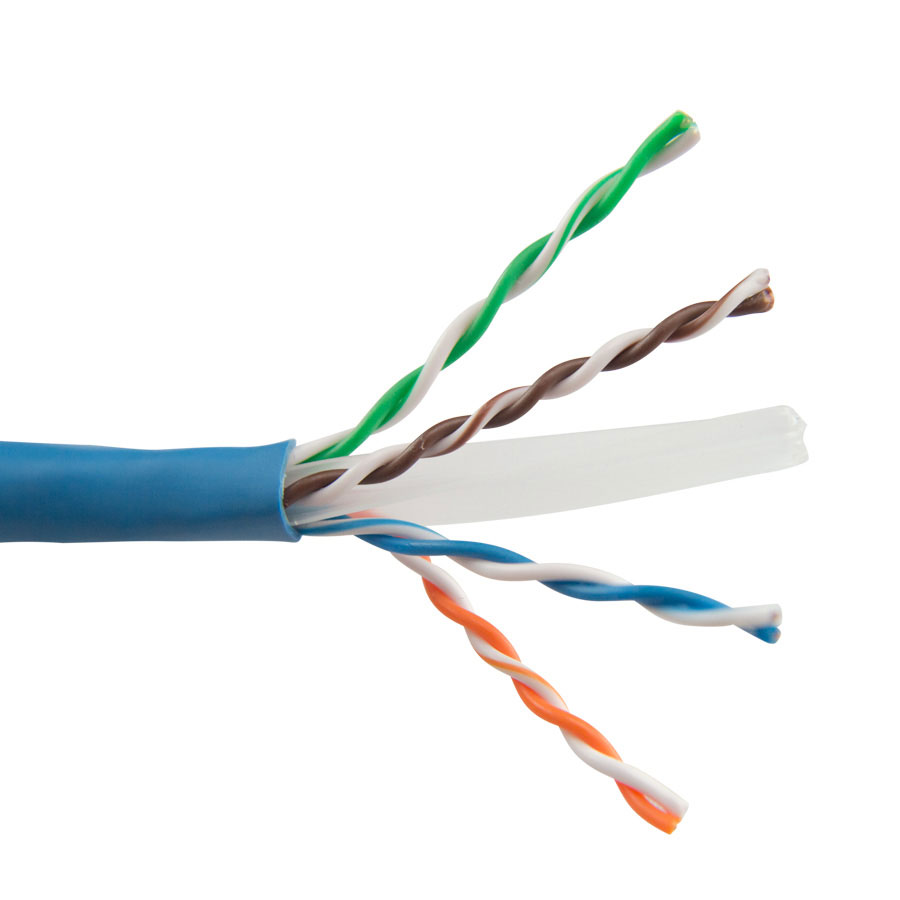

SC-BC2600BL – Cat6 UTP Installer Series ETL – Blue – 1000ft Box
Cat6 – Installer Series 500MHz 23awg Solid BC 4pr, UTP, ANSI/TIA 568.2-D, ISO/IEC 11801 Class E, IEEE 802.3at Type 2, CMR ETL, PVC Jkt- Blue – 1000ft/305m Box
| Cable Construction | U/UTP |
| Jacket Material/Rating | PVC |
| Fire Safety Rating | CMR FT4 |
| 3rd Party Rated | ETL c(ETL) |
| Installation Type | Indoor |
| Enhanced Tested Bandwidth | 550 MHz |
| Bandwidth per ANSI/TIA 568.2-D | 250 MHz |
| ISO/IEC 11801 Class Type | Class E |
| Transmission Standards | 1G/8G |
| PoE Rating (IEEE 802.3af,at,bt) | 30W/60W Type 1-3 |
| Wire Conductors | Solid BC |
| Wire AWG | 23 AWG |
| Conductor Insulation | HDPE |
| Pair Separator/Spline | Yes |
| Cable Overall Diameter (OD) | 6.2mm (0.244 in) |
| Insulated Conductor OD | 1.0mm (0.039 in) |
| Packaging Type | Reelex II Box |
| Packaged Length (ft/m) | 1000ft/305m |
| 20 Free Connectors | S45-1620 |
Cat6 – Installer Series 500MHz 23awg Solid BC 4pr, UTP, ANSI/TIA 568.2-D, ISO/IEC 11801 Class E, IEEE 802.3at Type 2, CMR ETL, PVC Jkt- Blue – 1000ft/305m Box
BONUS: 20 Free S45-1620 Connectors Inside Every Box!
See our Cable Selector Guide to assist with your SimplyBRANDS selection process to easily identify the correct cable required to properly support the bandwidth, transmission rate & PoE requirements that your installed devices & applications need to perform at the highest level.
