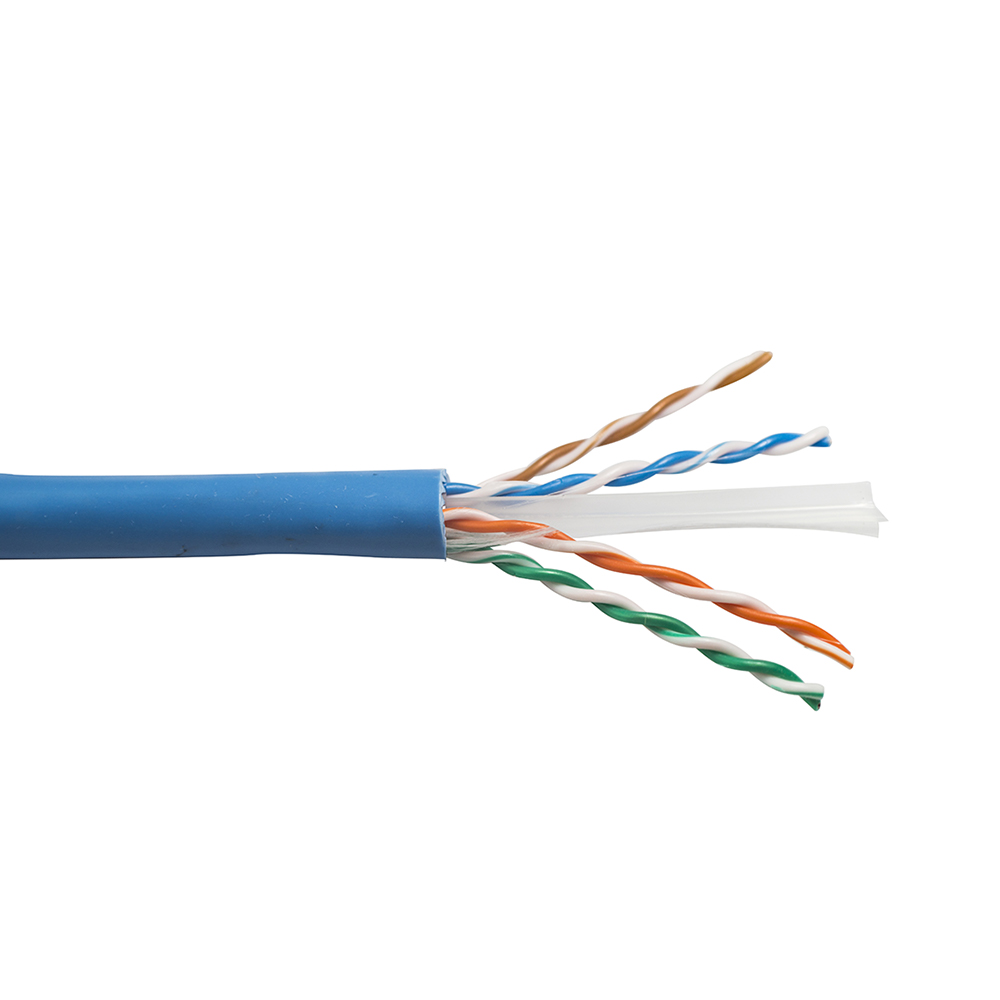

SC-BC1700BL – Cat6a UTP Pro Series UL, Blue – 1000ft Reel In Box
Cat6a – Pro Series HDBaseT Enhanced 10GBASE-T, 600 MHz 23awg Solid BC 4PR UTP, ANSI/TIA-568.2-D, ISO/IEC 11801 Class Ea, EN50575 Dca-s3,d2,a3 PoE/PoH IEEE 802.3bt Type 3/4, UL CMR, UV Sun Res PVC JKT- Blue- 1000FT/305M Reel in Box
| Cable Construction | U/UTP |
| Jacket Material/Rating | PVC-UV |
| Fire Safety Rating | CMR FT4 |
| 3rd Party Rated | UL c(UL) |
| Installation Type | Indoor/Outdoor UV Sun Res |
| Enhanced Tested Bandwidth | 600 MHz |
| Bandwidth per ANSI/TIA 568.2-D | 500 MHz |
| ISO/IEC 11801 Class Type | Class Ea |
| Transmission Standards | 10G+ |
| PoE Rating (IEEE 802.3af,at,bt) | 90W Type 1-4 |
| Wire Conductors | Solid BC |
| Wire AWG | 23+ AWG |
| Conductor Insulation | HDPE |
| Pair Separator/Spline | Yes |
| Cable Overall Diameter (OD) | 7.2mm (0.283 in) |
| Insulated Conductor OD | 1.05mm (0.041in) |

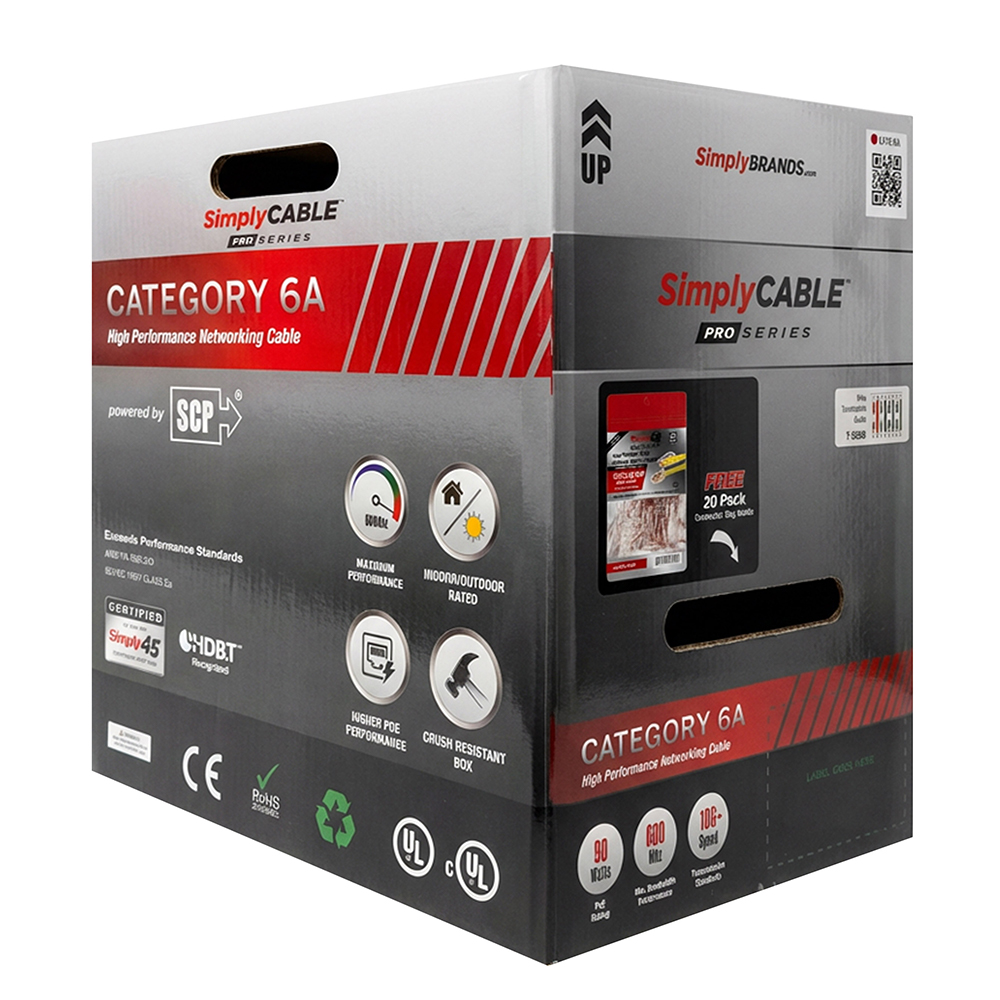

| Packaging Type | Premium Reel-in-Box |
| Packaged Length (ft/m) | 1000ft/305m |
| 20 Free Connectors | S45-1720P |
Cat6a – Pro Series HDBaseT Enhanced 10GBASE-T, 600 MHz 23awg Solid BC 4PR UTP, ANSI/TIA-568.2-D, ISO/IEC 11801 Class Ea, EN50575 Dca-s3,d2,a3 PoE/PoH IEEE 802.3bt Type 3/4, UL CMR, UV Sun Res PVC JKT- Blue- 1000FT/305M Reel in Box

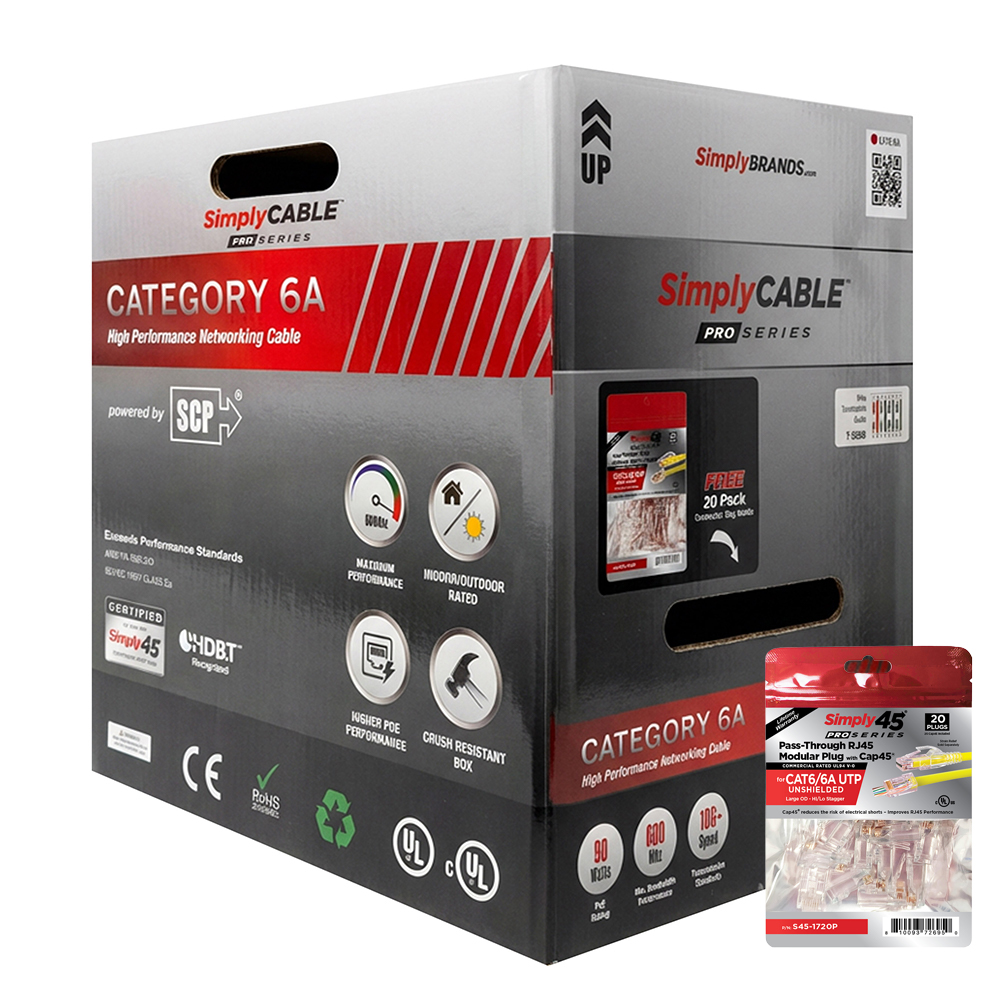

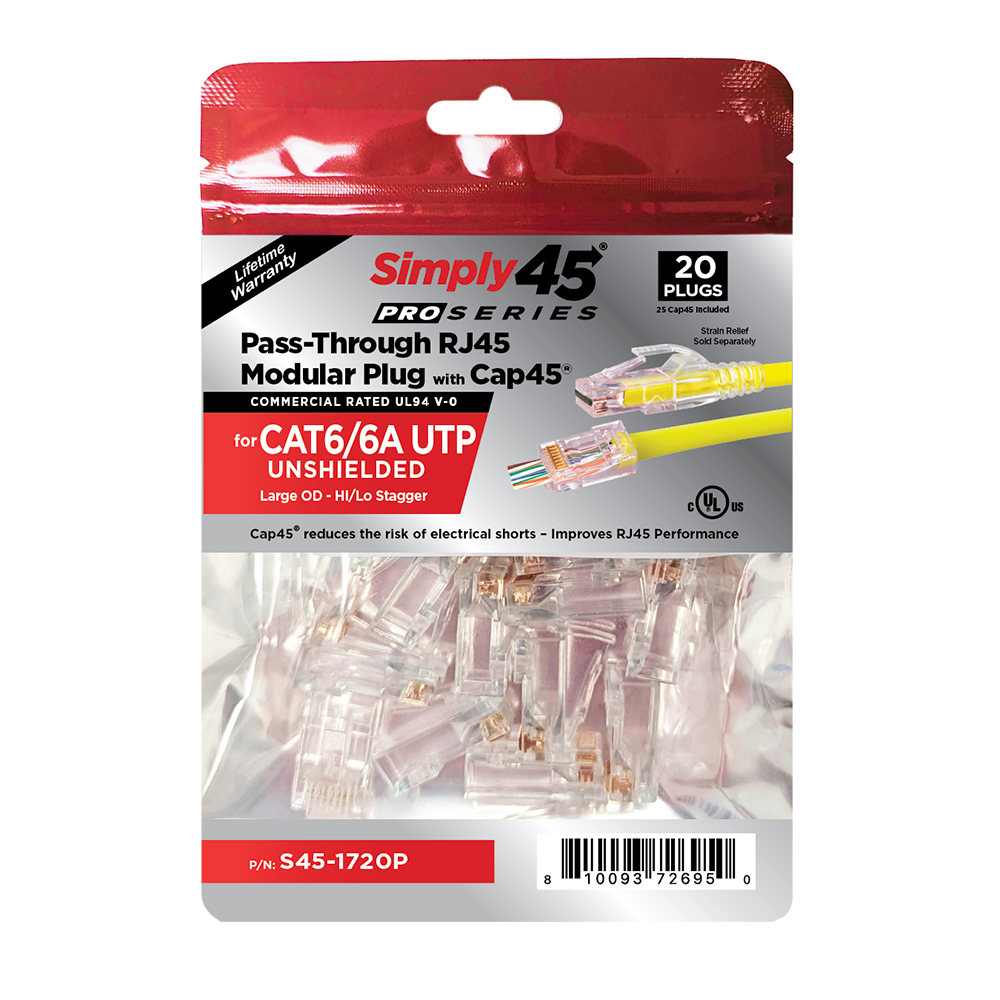

BONUS: 20 Free S45-1720P Connectors Inside Every Box!
See our Cable Selector Guide to assist with your SimplyBRANDS selection process to easily identify the correct cable required to properly support the bandwidth, transmission rate & PoE requirements that your installed devices & applications need to perform at the highest level.
