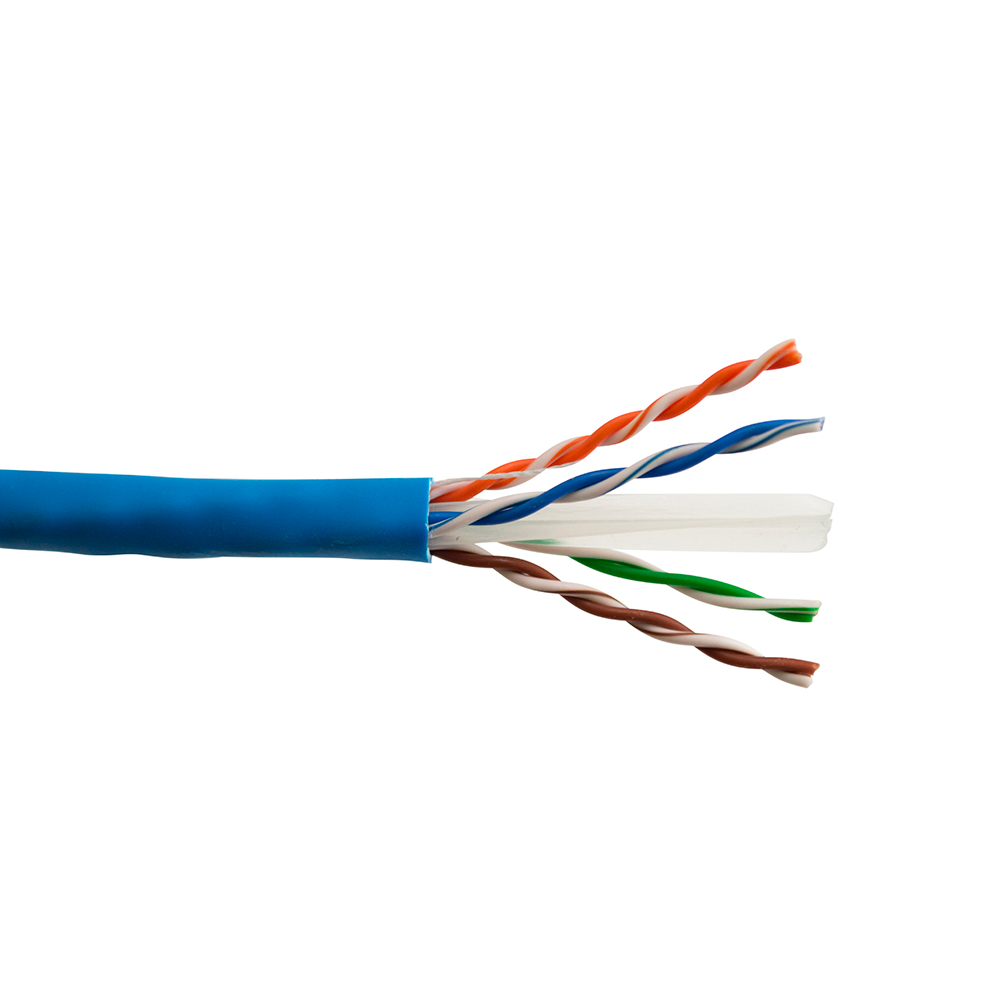

SC-BC1600BL – Cat6 UTP Pro Series UL, Blue – 1000ft Box
Cat6 Pro Series Indoor/Outdoor HDBaseT 550MHz 23awg Solid BC, 4PR, UTP, ANSI/TIA 568-2.D, ISO/IEC 11801 Class E, IEEE 802.3bt Type 4 PoE 90W, UL CMR/FT4, EN50575 Dca-s3,d2,a3, UV Sun Res PVC Jkt Blue – 1000ft/305m Box
| Cable Construction | U/UTP |
| Jacket Material/Rating | PVC-UV |
| Fire Safety Rating | CMR FT4 |
| 3rd Party Rated | UL c(UL) |
| Installation Type | Indoor/Outdoor UV Sun Res |
| Enhanced Tested Bandwidth | 550 MHz |
| Bandwidth per ANSI/TIA 568.2-D | 250 MHz |
| ISO/IEC 11801 Class Type | Class E |
| Transmission Standards | 1G/10G |
| PoE Rating (IEEE 802.3af,at,bt) | 60W/90W Type 3-4 |
| Wire Conductors | Solid BC |
| Wire AWG | 23+ AWG |
| Conductor Insulation | HDPE |
| Pair Separator/Spline | Yes |
| Cable Overall Diameter (OD) | 6.3mm (0.248 in) |
| Insulated Conductor OD | 1.05mm (0.041in) |

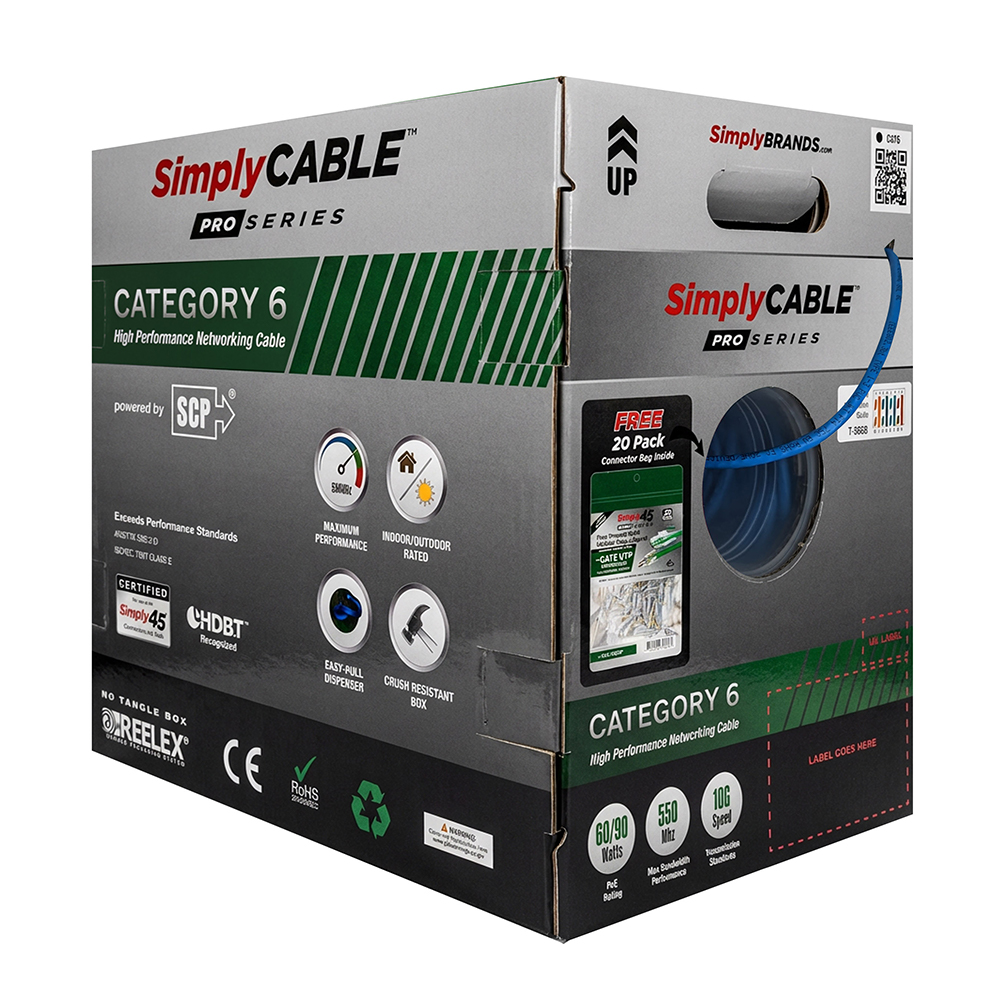

| Packaging Type | Premium Reelex II Box |
| Packaged Length (ft/m) | 1000ft/305m |
| 20 Free Connectors | S45-1620P |
Cat6 Pro Series Indoor/Outdoor HDBaseT 550MHz 23awg Solid BC, 4PR, UTP, ANSI/TIA 568-2.D, ISO/IEC 11801 Class E, IEEE 802.3bt Type 4 PoE 90W, UL CMR/FT4, EN50575 Dca-s3,d2,a3, UV Sun Res PVC Jkt Blue – 1000ft/305m Box

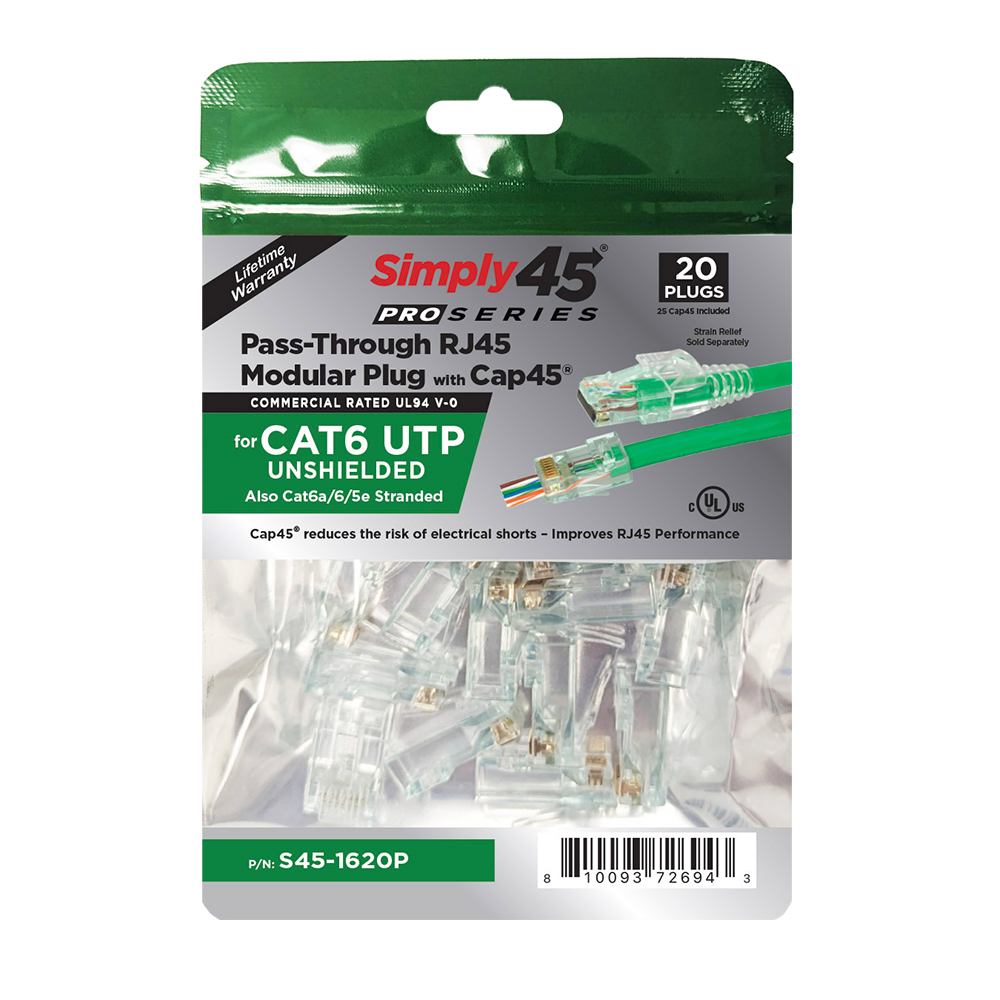

BONUS: 20 Free S45-1620P Connectors Inside Every Box!
See our Cable Selector Guide to assist with your SimplyBRANDS selection process to easily identify the correct cable required to properly support the bandwidth, transmission rate & PoE requirements that your installed devices & applications need to perform at the highest level.
